Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
  • Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
  • Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
  • Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
  • Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
  • Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
  • Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control

Place of Origin CHINA
Marca ZHENGZHOU LANSHUO
Certificazione CE
Model Number LSW-50
Dettagli del prodotto
Rated power:
50KW
Input voltage:
Three phase electricity 380V/50-60HZ
DC voltage:
500V
DC current:
75A
The heating frequency:
18-25KHZ
Air switch:
3*100A
Ground wire:
1mm² copper core wire
Water pressure:
0.15-0.2MPa
Cooling water requirement:
2.5m³water tank or 4T closed cooling water tower
Input power cord:
35mm² copper core wire
Input power control switch:
3*150A
Equipment ground wire:
1mm² copper core wire
Evidenziare:

50KW Induction Brazing Equipment

,

Digital Control Induction Brazing Equipment

,

Handheld Induction Brazing Equipment

Termini di pagamento e spedizione
Minimum Order Quantity
1 SET
Prezzo
4000USD-6000USD
Packaging Details
WOODEN CASE
Delivery Time
5-8WORKING DAYS
Payment Terms
T/T
Descrizione del prodotto
50KW Induction Heating Machine(LSW-50)
Rated power 50KW
Input voltage Three phase electricity 380V/50-60HZ
DC voltage 500V
DC current 75A
The heating frequency 18-25KHZ
Air switch 3*100A
Ground wire 1mm² copper core wire
Water pressure 0.15-0.2MPa
Weight(after packing) 140KG
Dimension(after packing) 670mm*820mm*1460mm
Cooling water requirement 2.5m³water tank or 4T closed cooling water tower





Electricity Installation
Input power cord 35mm² copper core wire
Input power control switch 3*150A
Equipment ground wire 1mm² copper core wire





Cooling water installation
Control cabinet water interface quantity water inlet:one water outlet:one
Auxiliary engine water interface quantity water inlet:one water outlet:one
Water pipe specification connecting equipment water intake pipe:internal diameter 25mm
Connecting equipment water outtake pipe:internal diameter 25mm

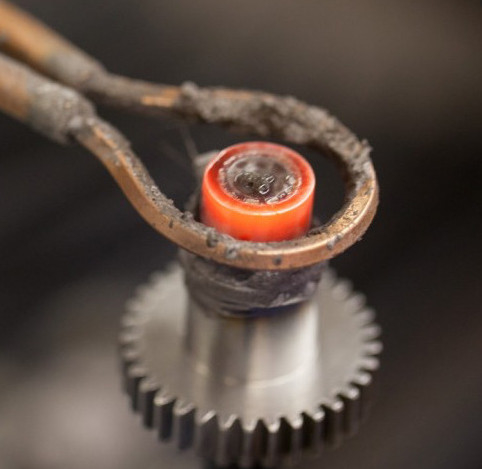

Pictures:

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 0



Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 1Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 2



Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 3Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 4



Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 5Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 6



CE:



Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control 7
