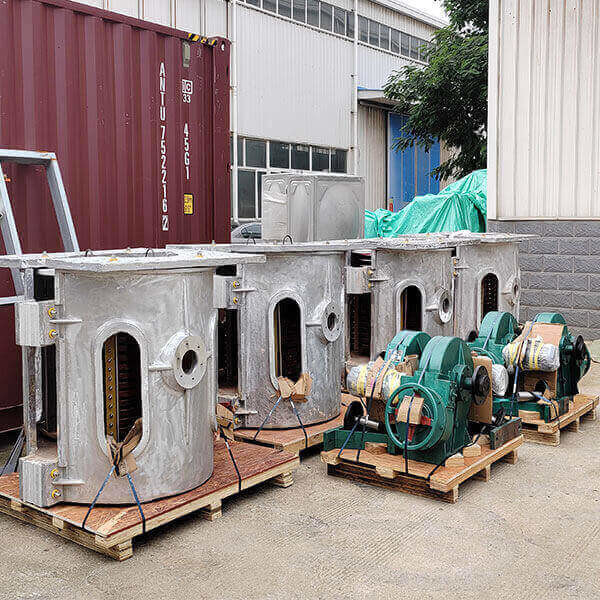

800KW 1T Induction Melting Furnace for Iron Steel Copper Aluminum Scrap

Place of Origin	China
Marca	Lanshuo
Certificazione	CE ISO EAC
Model Number	KGPS-1T/800KW

Dettagli del prodotto

Type:

Induction Melting Furnace

Power Source:

electricity

Melting Material:

500kg 750kg 1000kg Iron Steel Copper Aluminum Lead Gold Silver

Rated Temperature:

1800°c

Rated Power:

800KW

Voltage:

3-phase 380v, 50/60HZ

MF Frequency:

1KHZ

Medium Voltage:

750v Phase

DC Voltage:

500V Phase

DC Current:

1600A Phase

Evidenziare:

800KW induction melting furnace

1T steel melting furnace

copper aluminum scrap furnace

Termini di pagamento e spedizione

Minimum Order Quantity

1 set

Prezzo

USD 14000-15000 per set

Packaging Details

plywood case, 3 packages, about 9cbm, about 2.8T

Delivery Time

7-10 working days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 sets per year

Descrizione del prodotto

500kg 1000kg 1ton Scrap Metal Smelting Industrial Furnace

Product Specifications

Attribute	Value
Type	Induction Melting Furnace
Power Source	Electricity
Melting Material	500kg 750kg 1000kg Iron Steel Copper Aluminum Lead Gold Silver
Rated Temperature	1800°C
Rated Power	800KW
Voltage	3-phase 380V, 50/60HZ
MF Frequency	1KHZ
Medium Voltage	750V Phase
DC Voltage	500V Phase
DC Current	1600A Phase

Medium Frequency Induction Melting Furnace Overview

Our constant power (energy-saving) intermediate frequency induction melting furnace has been extensively tested and improved, resulting in superior performance that has earned widespread customer approval.

Key Features

High melting rate for efficient operation
Produces good-quality molten steel with high casting product yield
High power factor exceeding 97% during operation
No harmful effects on power grid
Low power consumption with over 10% energy savings
100% start-up success rate under any load condition
Main control panel with plug-in connectors for easier maintenance
Simple installation process requiring minimal technical expertise
Series thyristor design minimizes SCR damage rate

Technical Parameters

Model	KGPS-1T/800KW
Rated Power	800KW
Rated Capacity	1T
Matching transformer's capacity	1000KVA
Voltage	380V, 50/60HZ
MF Frequency	1KHZ
Medium Voltage	750V Phase
DC Voltage	500V Phase
DC Current	1600A Phase
Rated Temperature	1800°C
Closed Loop Water Cooling Tower	LSN-80B
